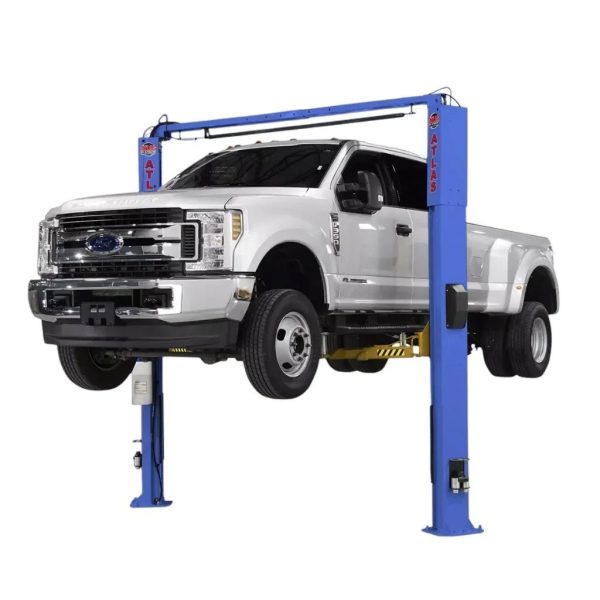

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift
$704.70
Atlas® ATTD-OHX10000X Specifications Capacity 10,000 LB. Overall Height 152″ (12′ 8″) Overall Floor Width 144 3/8″ (12′ 3/8″) Outside Column to Outside Column 136″ (11′ 4″) Maximum Lift Height (Without Adapters) 74 3/4″ Maximum Lift Height (With A…
Free US Shipping
On every order, no minimum
On every order, no minimum
Fast Dispatch
Ships in 1–2 business days
Ships in 1–2 business days
Delivery 4–7 Days
Tracked to your door
Tracked to your door
30-Day Returns
No restocking fees
No restocking fees
Secure SSL Checkout
Money-Back Guarantee
US-Based Support
Atlas® ATTD-OHX10000X Specifications Capacity 10,000 LB. Overall Height 152″ (12′ 8″) Overall Floor Width 144 3/8″ (12′ 3/8″) Outside Column to Outside Column 136″ (11′ 4″) Maximum Lift Height (Without Adapters) 74 3/4″ Maximum Lift Height (With Adapters) 85 3/4″ Minimum Arm Height 4 1/2″ Inside Column 118 1/4″ (9′ 10 1/4″) Drive Thru 106 7/8″ (8′ 10 7/8″) Column Size 9 1/8″ x 11″ Column Thickness of Steel 5mm Base Of Lift 18 1/2″ x 21 1/2″ Motor/Electrical Requirement 220 volt single (1) phase. A 30 amp breaker is recommended Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,665 LBS. Adapter Heights 4 Each 2″, 3″, 6″ Arm Hole/Adapter Peg Size 1.5″ Requires a minimum of 4″ of concrete with a 3000 psi. rating
Key Features
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide
- Overall height: 152″ (12′ 8″)
- Symmetric arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Rubber Covers on Carriages
- Single Point Lock Release
- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,665 lbs
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Availability: In Stock
