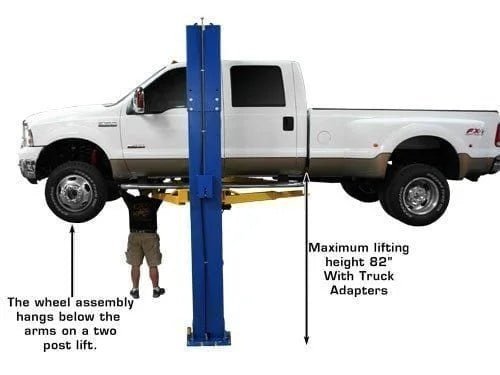

Atlas PV10PX 10,000 lb Overhead 2-Post Lift Car
$706.50
Atlas® ATTD-PV10PX Specifications Capacity 10,000 LB. Overall Height 143 1/8″ (11′ 11 1/8″) or 146 7/8″ (12′ 2 7/8″) Overall Floor Width 137 1/2″ (11′ 5 1/2″) Outside Column to Outside Column 125″ (10′ 5″) Maximum Lift Height (Without Adapters) 71…
Free US Shipping
On every order, no minimum
On every order, no minimum
Fast Dispatch
Ships in 1–2 business days
Ships in 1–2 business days
Delivery 4–7 Days
Tracked to your door
Tracked to your door
30-Day Returns
No restocking fees
No restocking fees
Secure SSL Checkout
Money-Back Guarantee
US-Based Support
Atlas® ATTD-PV10PX Specifications Capacity 10,000 LB. Overall Height 143 1/8″ (11′ 11 1/8″) or 146 7/8″ (12′ 2 7/8″) Overall Floor Width 137 1/2″ (11′ 5 1/2″) Outside Column to Outside Column 125″ (10′ 5″) Maximum Lift Height (Without Adapters) 71 7/8″ Maximum Lift Height (With Adapters) 82 7/8″ Minimum Arm Height 4 3/8″ Inside Column 110 3/8″ (9′ 2 3/8″) Drive Thru 96″ (8′) Column Size 7 1/2″ x 14 1/2″ Column Thickness of Steel 6mm Base Of Lift 17 1/2″ x 20 1/2″ Motor/Electrical Requirement 220 volt single (1) phase. A 30 amp breaker is recommended Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,905 LBS. Adapter Heights 4 Each 2″, 3″, 6″ Arm Hole/Adapter Peg Size 1.5″ Requires a minimum of 4″ of concrete with a 3000 psi. rating
Key Features
- 10,000 lb. capacity
- Commercial Grade
- Adjustable Height – 11′ 11 1/8″ or 12’3″
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Padded Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,905 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Availability: In Stock
