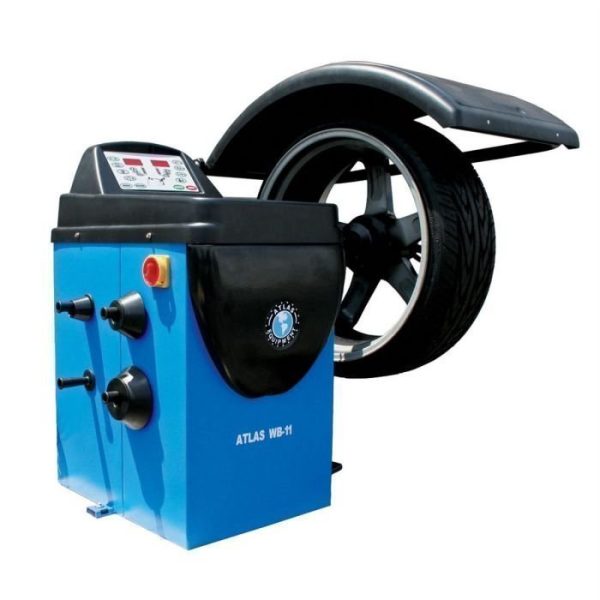

Atlas WB11 Self-Calibrating Computer Wheel Balancer

The Atlas WB11 is the most popular Atlas wheel balancer that we sell. Low price, dependability and repeatable accuracy make the Atlas WB11 one of the most popular models of the entire Atlas line of computer wheel balancers. The Atlas WB11 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually “plug and play” so repair is easy when it is time to replace parts.

The Atlas WB11 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the Atlas WB11, both in ease of use and ease of repair, make this balancer the perfect choice for your shop. The Atlas WB11 wheel balancer handles wheels that weigh up to 130 lbs.

Auxiliary Brake Pedal This Atlas Wheel Balancer has a foot pedal auxiliary brake that allows the operator to hold the wheel assembly in the correct position when attaching the wheel weight to the rim.

Key Features

• Easy To Read Display
• Auto Positioning
• Auto / Pedal Brake
• Auto Start / Stop
• Static And Dynamic Balancing Modes
• Rapid Optimization
• Self-Diagnosis
• Self-Calibration
• Exceptional Stability In Reading The Unbalance Between Planes
• Metric And Standard
• No Anchor-Down Installation
• Max Tire Diameter: 39″ (3″ 6′)
• Rim Sizes (Cars And Light Trucks): 10″-32″ (2″ 8′ *
• Rim Width: 1 1/2″-20″ (1″ 8′)
• Shaft Size: 40mm
• Max. Wheel Weight: 150 lb.
• Balancing Speed: 150 rpm
• Truck Adapter Set: Optional
• Power Supply: 110 V 1Ph
• Motor: 1/4 Hp
• Display: Standard Or Metric
• Accuracy: 1g
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Shipping Weight: 300 lb.

Availability: In Stock
