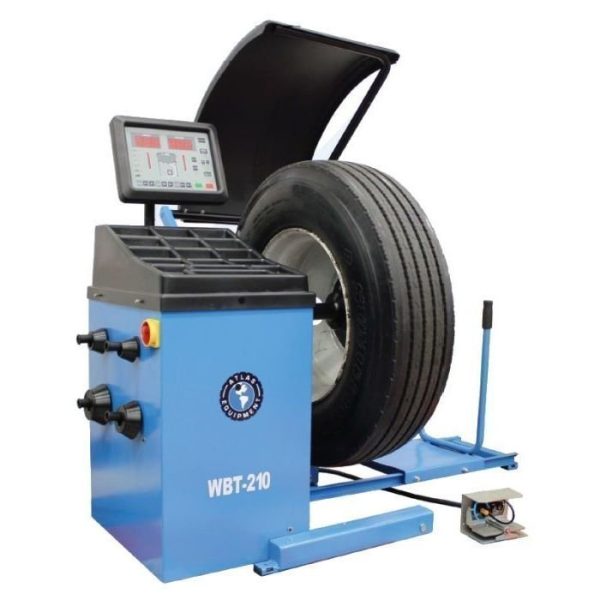

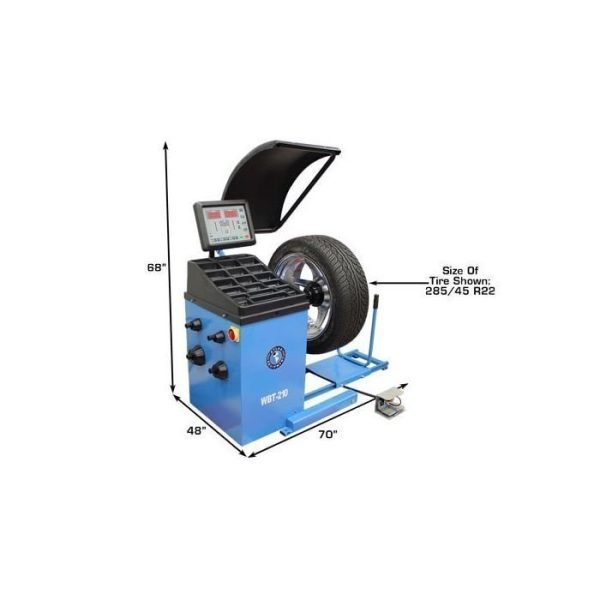

Atlas WBT210 Computer Truck Wheel Balancer

The Atlas WBT-210 Computer Truck Wheel Balancer with Wheel Lift is one of the best values in large truck tire computer balancers sold. This truck tire wheel balancer is priced thousands of dollars less than the Big Name brand truck tire wheel balancers and offers the same accuracy and reliability as the rest of the Atlas wheel balancer products.

The Atlas WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14″ steel rim up to and including a 300 lbs. semi-truck tire. There are many large (32″) custom wheels and over-sized “gumbo-mudders” that can easily be balanced on the Atlas WBT-210 computer wheel balancer.

The Atlas WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Key Features

• Computer Controlled Heavy Duty Spin Balancer
• Cone Sets For Car And Light Truck Tires
• Cone And Spacer Set For Truck, Bus, Or Implement Tires
• Plastic Quick Release Nut Included
• Heavy Duty Steel Wing Nut Included

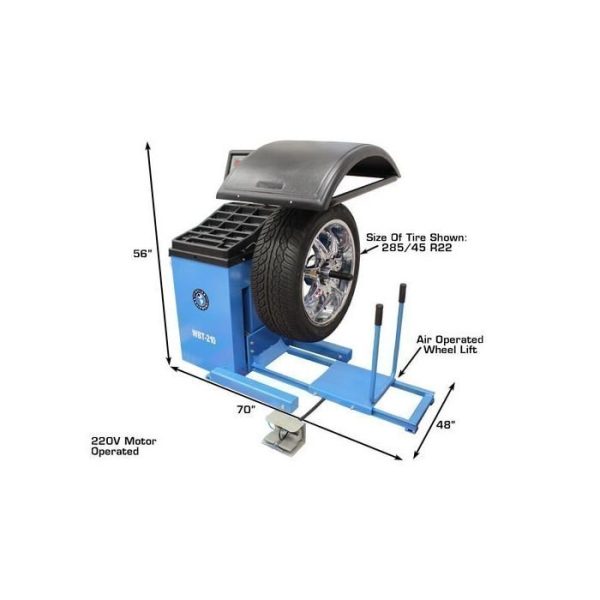

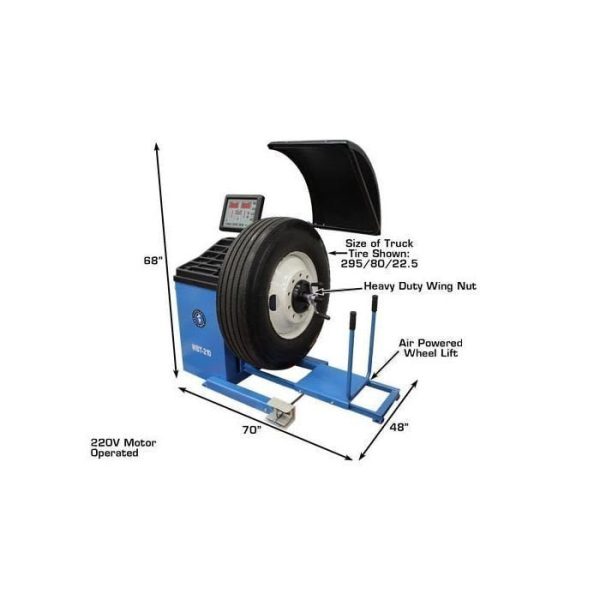

• Pneumatic Wheel Lift (External Air Supply Required)
• Automatic Start/Stop When Hood Is Lowered/Raised
• Static And Dynamic Balancing Modes
• Rapid Optimization (Opt)
• Self-Diagnosis
• Self-Calibration
• Exceptional Stability In Reading The Unbalance Between Planes
• Display In Grams Or Ounces, And In Mm Or Inches
• Wheel Weight Pliers Included
• Wheel Width Calipers Included
• CE Tested and Approved
• Replacement Parts & Wear Items Always In Stock
• Max Tire Diameter: 47″
• Rim Sizes (Cars And Light Trucks): 10″-32″
• Rim Width: 1 1/2″-20″
• Shaft Size: 40mm
• Max. Wheel Weight: 440 lbs.
• Balancing Speed: 150 RPM Car-Light Truck Mode
• Balancing Speed: 90 RPM Truck Mode
• Data Entry: All Dimensions Manual Entry
• Measurements: Standard Or Metric
• Accuracy: 1 gram Car-Light Truck Mode
• Accuracy: 10 gram Truck Mode
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/3 HP
• Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
• Power Supply: 220volt +/- 5% (209-231 volts) 1 Phase
• Electrical Requirement: 30 Amp Breaker Required
• Shipping Weight: 725 lbs.
• Warranty: (1) Year Limited Parts Only
