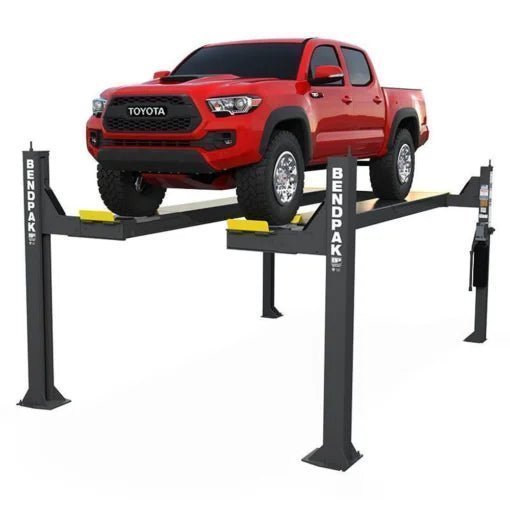

BENDPAK HDSO14AX 14,000 LB. CAPACITY / ALI CERTIFIED ALIGNMENT

The HDSO14AX is the sturdy beast you want as the backbone of your shop, especially if you specialize in servicing larger, low ground-clearance vehicles. Our alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with no resistance or hassle. We call it “free-floating.” You’ll call it unbelievably easy. This model is available with optional drive-thru ramps, drip trays and rolling jacks.

Open-Front Design and 14,000 Lbs. of Might

Features on HDSO14AX Alignment Lift Models

Key Features

• 14,000-lb. lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
• Heavy-duty turn plates and integrated rear slip-plates included
• Multi-position turn plate pockets
• Automatic leveling system
• Multiple auto-leveling locking positions
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks, and sheaves
• Internal “Anti-Sway” UHMW slider blocks in each column
• Features oversize sheaves and heavy-duty 1/2″ aircraft cable
• Rugged 1-3/8″ roller axles and oversize self-lubricating cable sheaves
• Multi-position safety locks in each column with push-button safety release
• Runways adjust for different tread widths and feature non-skid surface
• Optional 7,000-lb. capacity bridge jacks available (Model RJ-7) 14,000-lb. lifting capacity
• Lifting capacity: 14,000 lbs. / 6,350 kg
• Front axle max capacity: 7,000 lbs. / 3,175 kg
• Rear axle min capacity: 7,000 lbs. / 3,175 kg
• Overall width (front): 143″ / 3,632 mm
• Overall width (rear): 130″ / 3,304 mm
• Outside length: 215″ / 5,472 mm
• Overall length: 243″ / 6,191 mm
• Height of front columns: 105″ / 2,664 mm
• Height of rear columns: 103″ / 2,613 mm
• Height of safety lock ladder: 99″ / 2,519 mm
• Height of carriages: 30″ / 760 mm
• Runway min height: 7-5/8″ / 192 mm
• Max rise: 70″ / 1,778 mm
• Max lifting height: 77-5/8″ / 1,970 mm
• Width between posts: 120″ / 3,048 mm
• Runway width: 20-1/2″ / 520 mm
• Width between runways: 37-1/2″ – 51″ / 952 mm – 1295 mm
• Length of runways: 199″ / 5,054 mm
• Min 4-wheel alignment: 89″ / 2,261 mm
• Max 4-wheel alignment: 156″ / 3,962 mm
• Max 2-wheel alignment: 182″ / 4,623 mm
• Min wheelbase @ rated capacity: 140″ / 3,556 mm
• Min wheelbase @ 75% capacity: 120″ / 3,048 mm
• Min wheelbase @ 50% capacity: 100″ / 2,540 mm
• Min wheelbase @ 25% capacity: 80″ / 2,032 mm
• Locking positions: 13
• Lock spacing: every 4″ / 102 mm
• Lifting time: 60 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
• Shipping weight: 3,102 lbs. / 1,407 kg
• Shipping dimensions: 209″ x 22″ x 44″ / 5,309 mm x 559 mm x 1,118 mm

Availability: In Stock
