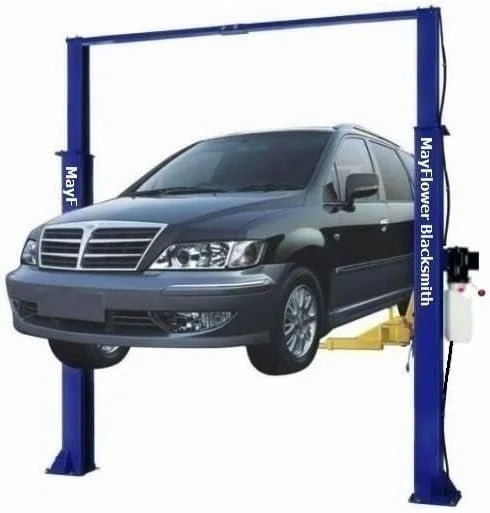

Mayflower Blacksmith Heavy Duty Clear Floor Two Post Lift Car lift CF 9000 lbs

Mayflower Blacksmith Clear Floor Overhead Two Post Lift Car lift CF9000 lb

Key Features

• Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
• Voltage: 220 Voltage
• Lifting weight capacity: 9,000 lbs
• Lifting height max: 71″
• Lifting height max with Truck Adapter: 75″
• Overall Height: 146″
• Overall Width: 135″
• Width between Posts: 109″
• Drive Thru Width: 92″
• Lifting Time: 40 sec – 50 sec
• Motor: 220V 60Hz 1 Phase / 3 Horse Power
• Front Arm assembly 2 Stage reach from 28″ to 42″
• Rear Arm assembly 2 Stage reach from 32″ to 62″
• Double two point safety lock release with built-in 18 locking positions
• Automatic arm lock restraints
• Drop-in type lifting pads and truck adapters included
• Relief valve built in power pump to prevent overloading
• Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life
• Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
• Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
• Anchor bolts/mounting hardware included
• 1 set of 4″ Truck adapters included
• Door guards protection rubber is optional
• Blue Powder coated finish provides superior resistance against corrosion.
• Shipping Weight: 1350 LB

Availability: In Stock
