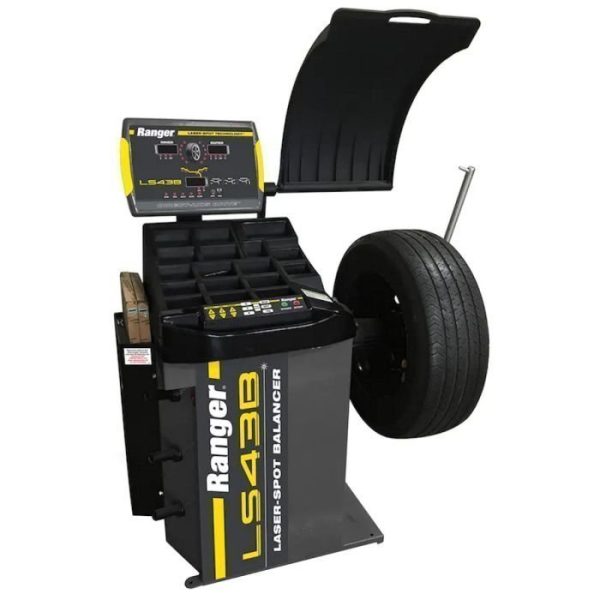

Ranger LS43B Laser-Spot Wheel Balancer

A Laser Wheel Balancer for Supreme Speed and Amazing Accuracy The Ranger LS43B laser wheel balancer handles wheels up to 43 inches in diameter. The average cycle time is just 7 seconds, making it one of the fastest floor-to-floor balancing machines ever built.

Ranger’s revolutionary 3D Auto Data Entry system combines our exclusive DataWand and Quick-Touch Data Arm, allowing you to automatically enter all wheel parameter settings in seconds flat. That gets you wheel diameter, wheel width, offset distance and targeted weight placement selections for exact balancing every time. Simply extend the built-in measuring wands and tap the wheel. That’s all it takes to achieve your desired wheel profile and wheel weight settings without having to manually input the data. Still, if you’re “old fashioned” and still like to enter data manually, go right ahead. It’s as easy to use the manual soft-touch control panel as it is to use the 3D Auto Data Entry system.

Laser-Spot Technology Laser balancers are increasingly being used in high-volume shops because lasers eliminate second-guessing and speed up weight placements. This also means the balance check you perform after placing inboard and outboard weights will almost always be clean. The fewer weights you use, the better your bottom line. Plus, customers will enjoy long-lasting balances that make their rides feel like new again.

Key Features

• Dynamic, Static, and Performance Alloy settings
• Multi-user save function holds presets to increase productivity
• Ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
• A simultaneous retrieval of static, dynamic and ALU1/ALU2/ALU3 data , identifies weight placement configurations for a variety of wheel styles and designs with the push of a button
• Automatic rolling wheel parameter setting feature saves time, minimizes errors
• Low-RPM balancing speed
• Rapid 7-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement (such as split-weight or hidden “behind-the-spoke” techniques)
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 40mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Automatic brake hold wheels at precisely 12-o’-clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• “Open-side” hood design allows for a broader coverage of tire shapes and sizes
• Style: Auto & Light Truck
• Data Entry: Automatic
• Maximum tire diameter: 47″ (1,194 mm)
• Max tire weight: 145 lbs. (65 kg)
• Max. wheel diameter: 10″ – 30″ (254 – 672 mm)
• Wheel width capacity: 2″ – 18″ (51 – 457 mm)
• Balancing increments: 0.25 or 0.01 oz.
• Balancing speed: 180 RPM
• Accuracy: +/- 1 gram (.035 oz.)
• Resolution: 0.01 ounce, 1.4°
• Motor 1.5 HP, 208-240V, 50 / 60 Hz, 1Ph
• Working temperature: 27°F (-5°C) – 82°F (50°C)
• Cycle Time: 6 seconds (avg.)
• Drive system: Belt Drive
• Balancing modes: Dynamic / Static / 3-Alloy
• Top positioning weight locator: Standard
• Inside & outside measuring: Standard
• Millimeter / inches selection: Standard
• Ounce / gram selection: Standard
• Wheel offset distance setting: Manual
• Self-calibration function: Standard
• Auto start: Standard
• Wheel spin braking: Automatic / Electronic
• Wheel holding manual brake pedal: Standard
• Centering cones included: 3 Standard / 1 truck
• Wheel calipers: Standard
• Rear cone mount spring: Standard
• No-mar rear cone mount pressure cup: Standard
• Quick-release & mount hub nut: Standard
